Get charged up!

Vector™ arrives on the scene in 2022.

Get charged up!

Vector™ arrives on the scene in 2022.

Introducing Vector, the first North American-style fully electric fire truck. As a true all-electric fire truck, departments can drive and pump on electric power only. Developed with technology partner Emergency One Group LTD—maker of the world’s first EV fire truck—this apparatus packs 327 kWh of proven automotive-grade batteries to deliver the longest electric pumping duration in the industry.

Along with a range-extender diesel engine for backup, our new electric fire truck features a North American design and is completely customizable to every department’s unique needs. It is built utilizing locally stocked components, making replacement parts readily available to keep equipment up and running.

Contact your E-ONE, KME, Ferrara, or Spartan ER dealer to pre-order or schedule an exclusive virtual session with our engineers today.

Schedule Session
Schedule

— VECTOR Features —

EXPLORE VECTOR IN 3D

EXPLORE VECTOR

Proven Global Technology

Developed with technology partner Emergency One Group

  • Introduced the world’s first electric fire truck.
  • Proven performance and design that match your operational requirements.

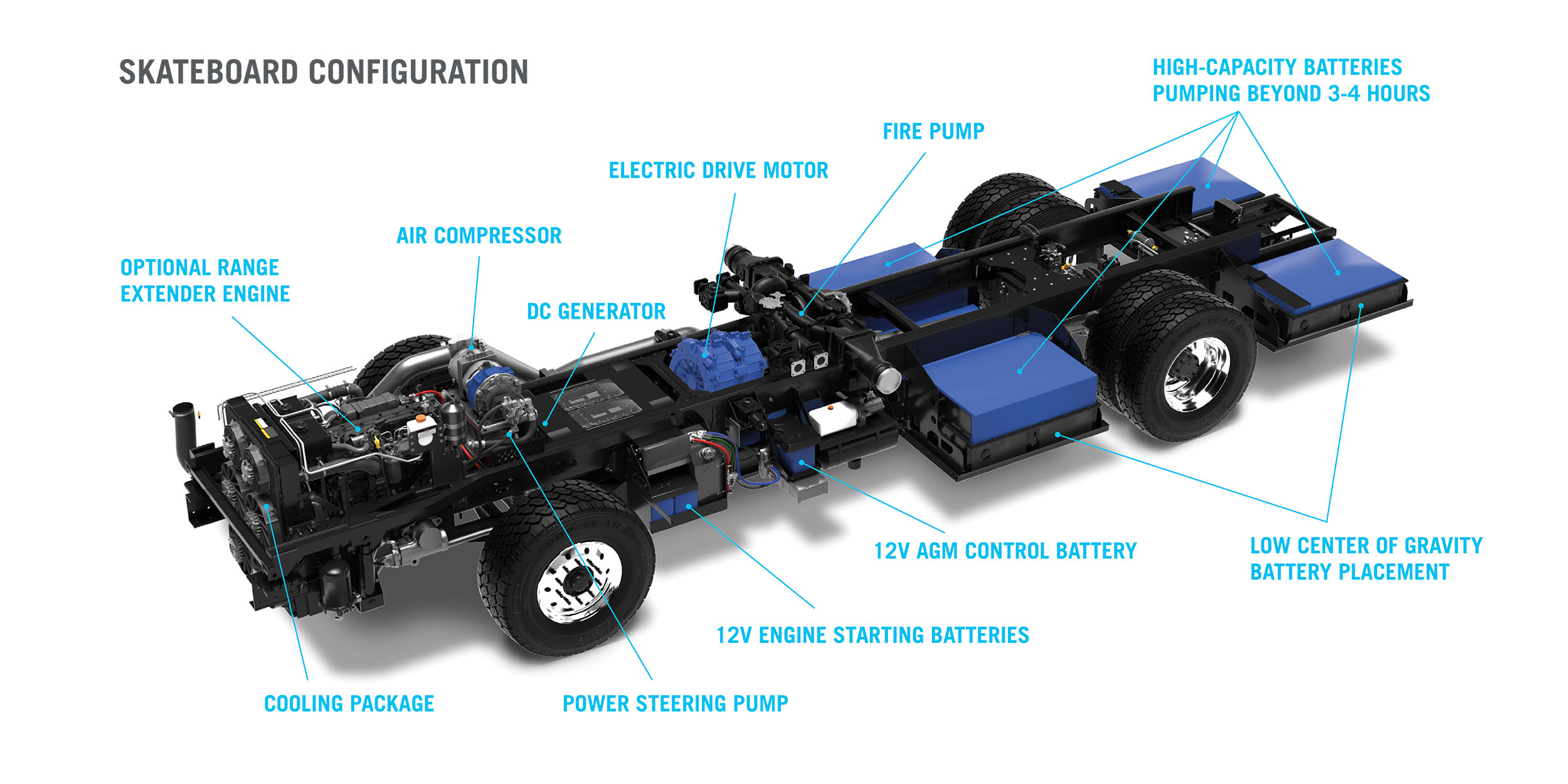

  • Designed with a superior battery storage solution allowing for a fully electric NFPA pump test, while maintaining a safer, lower center of gravity.

Proven Global Technology

Developed with technology partner Emergency One Group

  • Introduced the world’s first electric fire truck.
  • Proven performance and design that match your operational requirements.
  • Designed with a superior battery storage solution allowing for a fully electric NFPA pump test, while maintaining a safer, lower center of gravity.

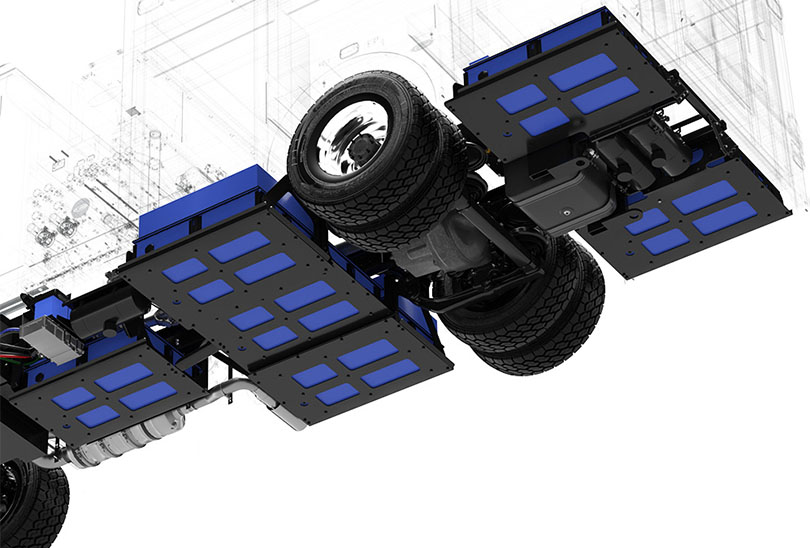

Most Powerful, Longest-lasting Battery Performance

2 to 6 times more battery power

  • High capacity batteries deliver 327 kWh of total power.
  • Allows for the longest electric pump duration.
  • EV battery system runs normal 12-volt accessories.
  • Battery Thermal Management System (BTMS) keeps the EV batteries at optimal temperature for best performance.
  • 120 V line voltage option

Most Powerful, Longest-lasting Battery Performance

2 to 6 times more battery power

  • High capacity batteries provide 327 kWh of total storage.
  • Allows for the longest electric pump duration.
  • 12-volt down converter runs normal 12-volt accessories.
  • Battery Thermal Management System (BTMS) keeps the EV batteries at optimal temperature for best performance.
  • 120 V line voltage option

Fully Electric Drive and Pump Operations

Perform 100% of fire ground duties, 100% electrical.

  • Delivers unrivaled performance, range and efficiency.
  • Electric motor takes the place of the diesel engine, driving the pump or the rear axle in normal split shaft operation.
  • Designed with the same components that are used on diesel driven fire apparatus.
  • NFPA compliant completely from battery power.

Fully Electric Drive and Pump Operations

Perform 100% of fire ground duties, 100% electrical.

  • Delivers unrivaled performance, range and efficiency.
  • Electric motor takes the place of the diesel engine, driving the pump or the rear axle in normal split shaft operation.
  • Designed with the same components that are used on diesel driven fire apparatus.
  • NFPA compliant completely from battery power.

Optional Range Extender Engine

  • Automatically engages and recharges batteries if lower limit of EV battery state of charge is reached.
  • Not required for pumping.
  • Not required for typical urban operation.
  • Capable of maintaining a constant state of charge during pump operations.
  • On-board charge capacity—120 kW.
  • Compact and delivers the cleanest possible emissions.
  • EPA Compliant

Optional Range Extender Engine

  • Automatically engages and recharges batteries if lower limit of EV battery state of charge is reached.
  • Not required while pumping.
  • Not required for typical urban operation.
  • Capable of maintaining a constant state of charge during pump operations.
  • 120kW on-board charge capacity.
  • Compact and delivers the cleanest possible emissions.
  • EPA Compliant

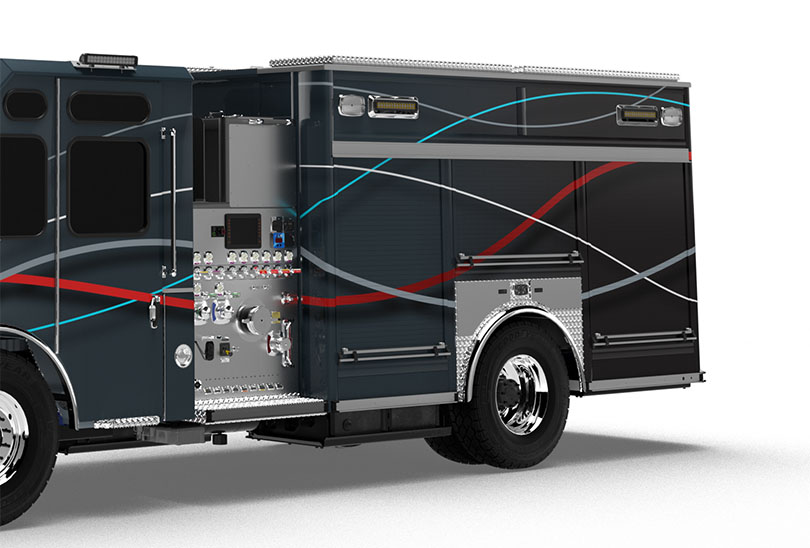

Customizable to Meet Your Department’s Needs

Customized to Department Requirements

  • Flexible North American cab, body and pump house customization.
  • Custom body configurations.
  • Up to 1250 gpm pump capacity with NFPA/ULC all-electric certification.
  • 1500 gpm (5680LPM)or higher certification with range extender operation.
  • Water/Foam tank options
    • 530 gal. (2000 L)
    • 780 gal. (2950 L)
    • 1030 gal. (3900 L)

Customizable to Meet Your Department’s Needs

Customized to Department Requirements

  • Flexible North American cab, body and pump house customization.
  • Custom body configurations.
  • Up to 1250 gpm pump capacity with NFPA/ULC all-electric certification.
  • 1500 gpm (5680LPM)or higher certification with range extender operation.
  • Water/Foam tank options
    • 530 gal. (2000 L)
    • 780 gal. (2950 L)
    • 1030 gal. (3900 L)

Locally Stocked Components

  • North American fire industry components.
  • Global battery and motor components stocked locally.
  • Replacement parts readily available.

Locally Stocked Components

  • North American fire industry components.
  • Global battery and motor components stocked locally.
  • Replacement parts readily available.
